Hub
Showing all 7 results
-
USBUSB-104-HUB / USB-3.5-HUB Rugged, Industrial Grade, 4-Port High-Speed USB 2.0 Hub
FEATURES
- Rugged, industrialized, four-port USB hub
- High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
- Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)
- Extended temperature (-40°C to +85°C) for industrial grade applications
- Data transfer rates up to 480 Mbps
- Supports bus powered and self powered modes
- Three power input connectors (power jack, screw terminals, or 3.5″ drive Berg power connector)
- LED status indicators for power and overcurrent fault conditions for each downstream port
- USB/104 form-factor for OEM embedded applications
- OEM version (board only) features PC/104 module size and mounting compatibility
- Includes micro-fit embedded USB header connectors in parallel with all standard USB connectors
- USB connectors feature industrial strength and high-retention design
- Small (4″ x 4″ x 1″), low profile, steel enclosure
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Header connectors with jumper posts for panel mounted user status LED connection
- 3.5” front panel drive bay mounting provision
- Wide Input power from 7VDC to 35VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
(0 reviews)$214.00 – $219.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Accessories
USB-104-IHUB Rugged, Industrial-Strength 4-Port Isolated USB Hub
Features
- Rugged, industrialized, four-port USB hub
- Tru-Iso™ signal isolation up to 4kV meets EN60601 standards
- Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)
- Full-speed USB 2.0 device, USB 3.1 and 1.1 compatible
- Power jack and screw terminals (high retention) for external power.
- Downstream ports capable of low-speed (1.5 Mbps) and full-speed (12 Mbps) transfers aggregate
- LED indicators for power and fault conditions for each downstream port
- Upstream and downstream short-circuit protection
- Industrial grade USB connectors feature high-retention design
- Includes micro-fit embedded USB header connectors in parallel with all standard USB connectors
- Industrial operating temperature (-40°C to +85°C)
- Small (4″ x 4″ x 1″), low profile, steel enclosure
FACTORY OPTIONS
- OEM (board only) version with PC/104 mounting holes and footprint for flexibility in embedded applications
- Header connectors with jumper posts for panel mounted user status LED connection
- Wide Input power from 7VDC to 35VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
(0 reviews)$295.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Accessories
USB-ISOLATOR – Single Port USB Isolator
Features
- Tru-Iso™ signal isolation up to 4kV meets EN60601 standards
- Upstream host port isolated from the downstream port
- Advanced EFT, Lightning, and ESD protection at ±20kV on all signal pins (air and contact)
- Full-speed USB 2.0 device, USB 3.1 and 1.1 compatible
- Rugged, industrial grade (-40°C to +85°C) operation
- Downstream port capable of low-speed (1.5 Mbps) and full-speed (12 Mbps) transfers aggregate
- LED status indicator for power from upstream port
- Compact, low profile enclosure, provision for DIN-rail mounting
- Industrial grade USB connectors feature high-retention design
- Max working isolation is 863 Volts peak (Viorm)
- Embedded miniature USB headers in parallel with type B and type A USB connectors (both upstream and downstream)
- RoHS standard
- Designed, made, supported, and manufactured in the USA
Factory Options
- OEM version (board only) for flexibility in embedded applications
- External power connection via screw terminals (high retention)
(0 reviews)$109.00 – $119.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
USB
USB3-104-HUB Rugged, Industrial Grade, 4-Port SuperSpeed USB 3.1 Hub
Features
- Rugged, industrialized, four-port USB 3.1 hub
- USB 3.1 Gen 1 with data transfers up to 5Gbps (USB 2.0 and 1.1 compatible)
- Extended temperature (-40°C to +85°C) for industrial/military grade applications
- Locking upstream, downstream, and power connectors prevent accidental disconnects, perfect for USB3 Vision applications
- Turns one upstream host port into four downstream ports
- SuperSpeed (5Gbps), Hi-speed (480Mbps), Full-speed (12Mbps), and Low-speed (1.5Mbps) transfers supported
- Supports bus-powered and self-powered modes, accessible via DC power input jack or screw terminals
- LED for power, and per port RGB LEDs to indicate overcurrent fault, High-Speed, and SuperSpeed
- USB/104 form-factor for OEM embedded applications
- OEM version (board only) features PC/104 module size and mounting compatibility
- USB connectors feature industrial strength and high-retention design
- Small (4″ x 4″ x 1″), low profile, steel enclosure
- RoHS compliant
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Economy version equipped with standard, instead of high-retention connectors
- Wide input external power accepts from 7VDC to 28VDC at the DC power jack or screw terminals
- Tantalum capacitors for flight and space based applications
- Conformal coating
- We offer a 7-port version: USB3-HUB-7
(0 reviews)$309.00 – $379.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
USB
USB3-HUB-7: Rugged USB 3.1, 7-Port Hub
Features
- 7-port USB 3.1 Gen 1 hub with data transfers up to 5Gbps
- Rugged, industrial grade (-40˚C to 85˚C) operation
- Locking upstream, downstream, and power connectors prevent accidental disconnects, perfect for USB3 Vision applications
- SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported
- Supports bus-powered and self-powered modes, accessible via DC power jack and a pair of screw terminals
- LED for power, and per port RGB LEDs to indicate overcurrent fault, High-Speed, and SuperSpeed
- Compact, steel, low-profile enclosure
- RoHS compliant
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- OEM (board only) version
- Economy version equipped with standard, instead of high-retention connectors
- Wide input external power accepts from 7VDC to 28VDC at the DC power jack or screw terminals
- Tantalum capacitors for flight and space-based applications
- Conformal coating
- We offer a 4-port version that has a board assembly in a PC/104 mechanical form factor: USB3-104-HUB
(0 reviews)$369.00 – $439.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
USB

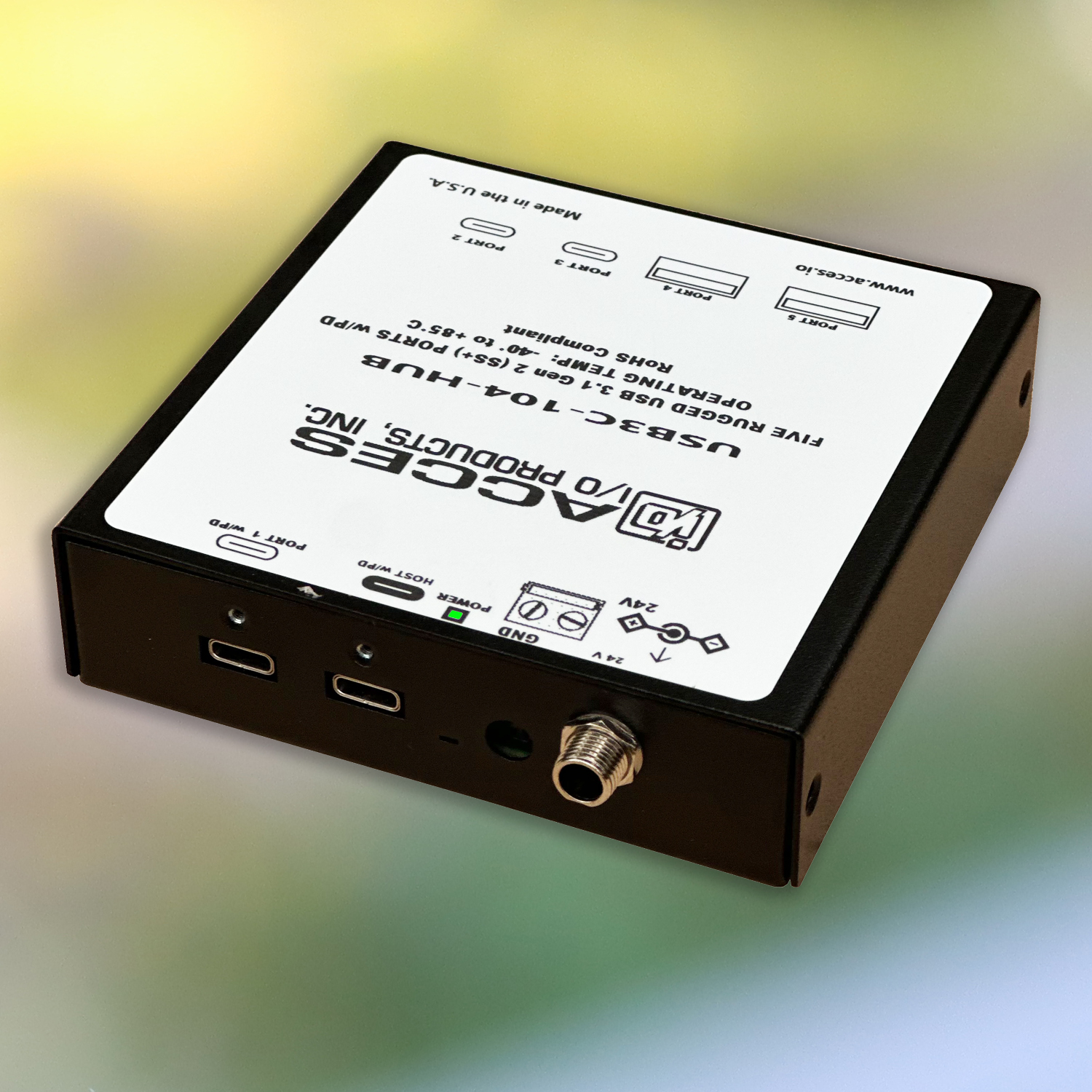

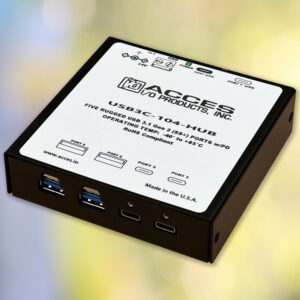

USB3C-104-HUB 5-Port SuperSpeed+ USB 3.1 Gen 2 Type C & Type A Hub with Power Delivery (PD)
Features
- 5-port USB 3.1 Gen 2 hub with data transfers up to 10Gbps
- USB C with Power Delivery (PD) 3.0 upstream to host PC at up to 20V @ 5A
- One downstream USB Type C with PD 3.0 at up to 20V @ 5A
- Two USB Type C downstream ports with Battery Charging v1.2 and Apple Charging standards (up to 2.8A per port), two Type A up to 1.8A
- IEC 61000-4 Lvl 4 ESD, EFT & Surge Protection on all USB data lines
- Rugged (0˚C to 70˚C) operation
- Locking upstream, downstream, and power connectors prevent accidental disconnects
- SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported on all ports
- Requires 20V – 26V power via DC power jack or a pair of standard high-retention screw terminals
(Our optional power supply provides 24V power) - Compact, steel, low-profile enclosure
- RoHS compliant
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Economy version equipped with standard, instead of high-retention connectors
- Tantalum capacitors for flight and space based applications
- Conformal coating
(0 reviews)$319.00 – $389.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
USB
USB3C-104-HUB4C 4-Port SuperSpeed10 USB 3.2 Gen 2 Type C Hub
Features
- 4-port USB 3.1 Gen 2 hub with data transfers up to 10Gbps
- Four USB Type C downstream ports with Battery Charging v1.2 and Apple Charging standards (up to 3A per port)
- IEC 61000-4 Lvl 4 ESD, EFT & Surge Protection on all USB data lines
- Rugged (0˚C to 70˚C) operation
- Locking upstream, downstream, and power connectors prevent accidental disconnects
- SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported on all ports
- Requires 24V power via DC jack or a pair of screw terminals
- Compact, steel, low-profile enclosure
- RoHS compliant
Factory Options
- OEM (board only) option with PC/104 mounting holes and footprint for convenience in embedded applications
- Economy version equipped with standard, instead of locking USB connectors
- Tantalum capacitors for flight and space based applications
- Conformal coating
(0 reviews)
