Ethernet
Showing all 7 results
-
UncategorizedIOB-96 and IOB-48 Isolated FET Output Accessories
Features
- 96 or 48 High-Side Power MOSFET outputs
- Tru-Iso™ I/O-to-PC 3.75kVrms opto-isolated
- 5.5” × 5.75”,
- IOB-96 mates directly to USB-DIO-96-OEM
- IOB-48 mates directly to USB-DIO-48-OEM and ETH-DIO-48-OEM
- Industrial Operating Temperature (-25°C to +85°C)
(0 reviews)$489.00 – $695.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Digital I/O

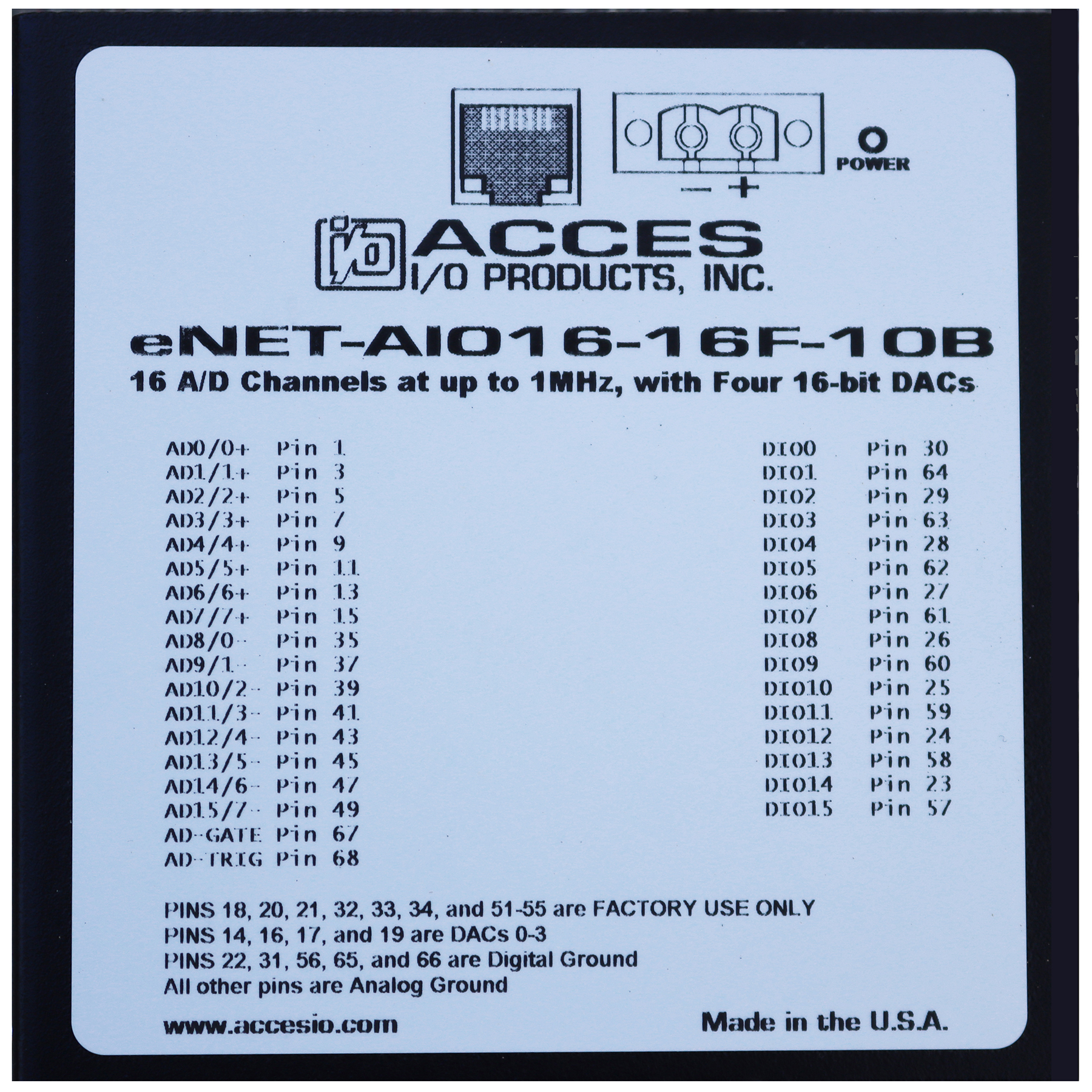

ENET-AIO16-16F Ethernet Multifunction Module — Preliminary
Features
- Ethernet 10/100/1000 Multifunction DAQ
- Sustained sampling speeds up to 1MHz
- 16-bit or 12-bit resolution A/D converter
- Flexible, software configured functionality
- 16 single-ended or 8 differential analog inputs
- 8 input ranges, 4 unipolar and 4 bipolar, channel-by-channel programmable
- Autocalibration and filtering onboard for accurate data
- Four 16-bit analog outputs with 4 factory ranges
- 16 high-current digital I/O lines
- TCP packet interface with Windows DLL API wrapper
- Small, (4″x4″x1.7″) rugged, steel industrial enclosure
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- Industrial operating temperature (-40°C to +80°C)
- OEM version (board only), features PC/104 size and mounting compatibility
- DIN rail mounting provision
- RoHS available, please contact us for ordering information
(0 reviews) -
Digital I/O
ETH-DIO-48 Ethernet Digital I/O Module
SPECIFICATIONS
Features
- Ethernet 10/100 RJ45 connector for interfacing to CPU or network
- 48 or 24 channel high-current TTL digital I/O lines
- Compatible with industry standard I/O racks such as Grayhill, Opto 22, Western Reserve Controls, etc.
- Eight-bit ports software selectable for inputs or outputs
- All 48 digital I/O lines buffered with 32 mA source / 64mA sink current capabilities
- Jumper selectable I/O pulled up to 5V (via 10KΩ) for contact monitoring, pulled down to ground or floating
- Supports configuration of power-on defaults I/O direction and output levels
- DHCP or static IP assignment
- 5VDC regulated external power supply included
- Resettable 0.5A fused +5VDC output per I/O connector
- Standard 50-pin IDC-type shrouded connectors with key
- Small, (4″x4″x1.7″) rugged, steel industrial enclosure
- Designed, made, supported, and manufactured in the USA
Factory Options
- Low-voltage (LVTTL) for 3.3V applications
- Industrial operating temperature (-40°C to +80°C)
- OEM version (board only), features PC/104 size and mounting compatibility
- Order with our IOB-48 for 48 channels of output isolation
- DIN rail mounting provision
- RoHS available, please contact us for ordering information
(0 reviews)$179.00 – $719.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Digital I/O
ETH-IDIO-16 Ethernet Isolated Input, Solid State Relay Output Family
Features
- Ethernet 10/100 RJ45 connector for interfacing to CPU or network
- 16 optically isolated inputs (3V to 31V)
- 16 fully protected and isolated High-Side FET 2A outputs
- DHCP or static IP assignment
- Internal, removable terminal board for easy wiring
- PC/104 module size and mounting compatibility
- Small (4″ x 4″ x 1.7″) rugged industrial enclosure
- DC Jack and screw terminals for external power
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- Eight- and four- input/output versions
- Input-only and solid-state output-only versions
- Economy “E” version without the screw terminal board
- OEM (board only) version with PC/104 mounting holes and PCB footprint
- Extended operating temperature (-40°C to +80°C)
- Wide input (7VDC to 30VDC) external power
- RoHS available
- DIN Rail mounting provision
(0 reviews)Call – $379.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Digital I/O
ETH-IIRO-16 Ethernet Isolated Input, Form C Relay Family
Features
- Ethernet 10/100 RJ45 connector for interfacing to CPU or network
- 16 optically isolated inputs (3V to 31V)
- 16 Form C electro-mechanical relays switch 1A
- DHCP or static IP assignment
- Internal, removable terminal board for easy wiring
- PC/104 module size and mounting compatibility
- Small (4″ x 4″x 1.7″) rugged industrial enclosure
- DC Jack and screw terminals for required external power
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- Eight- and four- input/output versions
- Input-only and relay-only versions
- Economy “E” version without the screw terminal board
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Extended operating temperature (-40°C to +80°C)
- Wide input (7VDC to 30VDC) external power
- RoHS available
- DIN rail mounting provision
(0 reviews)$229.00 – $399.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Ethernet
M.2-LAN-GbE Gigabit Ethernet Card
Features
- 2260/2280 sized M.2 Card with B & M keys and latching I/O connectors
- Rugged design includes overvoltage protection and buffering on all signals
- Onboard magnetics with built in isolation via transformer coupling
- Industrial Temperature (-40 to +85°C) and RoHS standard
- 10/100/1000 Base-T interface on mPCIe
- PCI Express v2.1 (2.5gt/s) interface
- Designed, made, supported, and manufactured in the USA
- Works in your computers’ NVME slots!
- Available in PCI Express Mini (mPCIe) form!
- Support for Wind River VxWorks (call for ordering information)
Factory Options:
- Low-PPM XTAL to support IEEE 1588 Precision Timing Protocol
(0 reviews)$144.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Ethernet
mPCIe-LAN-GbE Gigabit Ethernet Card
Features
- PCI Express Mini Card (mPCIe) 3Type F1, with Latching I/O Connectors
- Rugged design includes overvoltage protection and buffering on all signals
- Onboard magnetics with built in isolation via transformer coupling
- Industrial Temperature (-40 to +85°C) and RoHS standard
- 10/100/1000 Base-T interface on mPCIe
- PCI Express v2.1 (2.5gt/s) interface
- Available Now in M.2 form!
- Designed, made, supported, and manufactured in the USA
- Support for Wind River VxWorks (call for ordering information)
Factory Options
- Low-PPM XTAL to support IEEE 1588 Precision Timing Protocol
- RJ45 positive-retention cable assembly designed to be easily panel-mounted.
(0 reviews)$144.00 Add To Quote This product has multiple variants. The options may be chosen on the product page
