Signal Conditioning
Showing all 7 results
-
UncategorizedIOB-96 and IOB-48 Isolated FET Output Accessories
Features
- 96 or 48 High-Side Power MOSFET outputs
- Tru-Iso™ I/O-to-PC 3.75kVrms opto-isolated
- 5.5” × 5.75”,
- IOB-96 mates directly to USB-DIO-96-OEM
- IOB-48 mates directly to USB-DIO-48-OEM and ETH-DIO-48-OEM
- Industrial Operating Temperature (-25°C to +85°C)
(0 reviews)$489.00 – $695.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
Signal ConditionersA24A Solid State Module Card Family
Features
- Industry standard, opto-isolated digital I/O modules
- Choice of AC or DC inputs or outputs
- Screw terminals for easy interface to field wiring
- Edge connectors for interface to digital I/O cards via ribbon cable
- 4000V optical isolation
- Slim design to save space
- Alumina substrate provides superior heat dissipation
- ACCES no longer sells these directly.
Please find our products at www.wrcakron.com.
(0 reviews) -
Analog InputAIM-16 Family
Features
- Supports mixed Sensors: Thermocouples, RTDs, strain gages, voltage and current inputs
- Multiplexes 16 differential inputs to one analog single-ended output
- Cold junction compensation and break detect for thermocouple inputs.
- Gain programmable (0.5 to 1000) channel-by-channel
- Screw terminals for input terminations on plug-in blocks
- Designed, made, supported, and manufactured in the USA
(0 reviews)$395.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
AccessoriesIIB-24, 24 Isolated Input Board with 50 Pin IDC Connector
Features
- 24 optically isolated inputs
- Non-polarized inputs accept 31VDC or 24VAC
- Input isolation rated at 500V channel to channel and channel to ground
- Jumper-selectable filters per channel for AC inputs and to eliminate undesired response to electrically noisy DC signals
- Pairs with compatible 24-channel digital input boards
- On-board screw terminals
- Industry standard 50 pin keyed IDC connector
- Power for circuit isolation accepted from either pin-49 from host digital input connector or alternatively from power screw terminals
- LED indicates presence of +5VDC power for board operation
- PC/104 module size and mounting compatibility
- Designed, made, supported, and manufactured in the USA
(0 reviews)$149.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
AccessoriesLVDT-8U 8-Port LVDT/RVDT Excitation, Signal Conditioning Board
Features
- Eight or Four channels of AC LVDT conditioning
- Full-bridge and Half-bridge LVDTs supported
- Offset and wide-range gain calibration pots
- Removable screw terminal blocks for easy connection and serviceability
- Use easily with PLC or PC-based Data Acquisition
- Non-multiplexed, simultaneous conditioned outputs
- Compatible with other ACCES A/D products for use in legacy systems using DB37M connector
- Jumper selected LED display utility for quick and easy operating verification of connected LVDTs
- Factory oscillator frequency of 10kHz
- Master / Slave excitation frequency synchronization
- Onboard DC/DC converter with reverse power protection operates on a single 12VDC external source
- Designed, made, supported, and manufactured in the USA
(0 reviews)$295.00 – $1,229.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -
AccessoriesROB-24: 24 SPDT (DPDT optional), Form C Relays Board
Features
- 24 SPDT, Form C Relays (DPDT optional)
- Fully compatible with any ACCES digital I/O card (except for IOD-64)
- 3A carry-current contact ratings on ROB-24
- Screw terminals for #14 through #22 AWG wire
- LED status indicators for each relay
- Removable Screw Terminal Option
- Designed, made, supported, and manufactured in the USA
(0 reviews)Call – $249.00 Add To Quote This product has multiple variants. The options may be chosen on the product page -

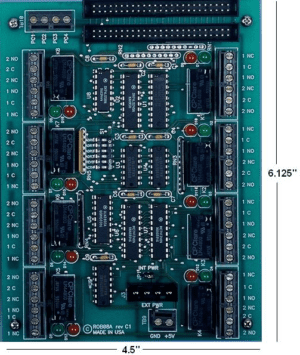

AccessoriesROB-8A Relay Accessory
Features
- Eight SPDT, Form C Relays (DPDT Optional)
- Fully compatable with any ACCES digital I/O card (except for IOD-64)
- Contacts rated to 2A
- Can mount in ACCES T-BOX
-
As many as four cards (providing 32 relays) can be controlled by a single 24-bit digital I/O port
- Designed, made, supported, and manufactured in the USA
(0 reviews)$125.00 – $155.00 Add To Quote This product has multiple variants. The options may be chosen on the product page
